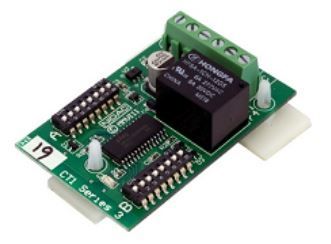

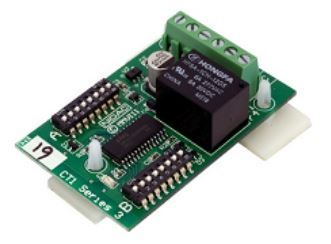

PRESCO TIMER RELAY BOARD
Stock Code:
APOLCT-1 TIMER
$86.28
Description
Description
The Nidac CT1 Series 3 Control Timer has 13 different operating modes and 4 timing ranges, 3 trigger modes, dual DC voltage operation & a heavy duty relay output.
- Size: 45mm x 70mm x 19.5mm (without feet)
- 57mm x 70mm x 23.5mm (with feet)
- Operating Voltage: 10.5 - 28 Volts D.C.
Quiescent Current
- 10 mA. @ 12 Volts D.C. - (40 mA. with relay on).
- 11 mA. @ 24 Volts D.C. - (45 mA. with relay on).
- High Trigger Voltage: > 2 Volts D.C.
- Low Trigger Voltage: < 1.5 Volts D.C.
Trigger Current
- -0.03 mA. @ 0 Volts D.C.
- 0.9 mA. @ 12 Volts D.C.
- 2.1 mA. @ 24 Volts D.C.
Relay
- Maximum Switching Current: 5 Amps.
- Maximum Switching Voltage: 30 VDC, 125 VAC
