YALE ASSURE KEYED ELECTRONIC DIGITAL DEA
Description

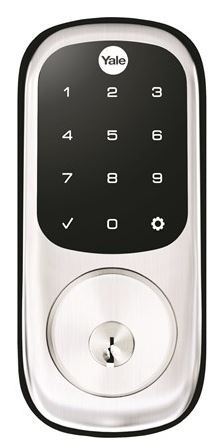

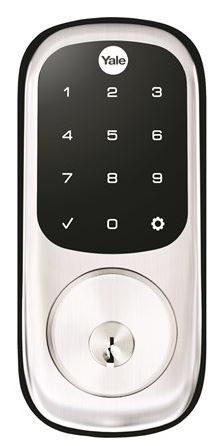

Yale Assure Keyed Electronic Digital Deadbolt - Satin Chrome
Lock and unlock your home without the hassle of keys. Create unique PIN codes to share with your family and friends for ultimate convenience. Including a backlit touch screen keypad, users have the option of entering a PIN code to unlock the door. An automatic re-lock function is available so that when the latch is retracted, the lock will automatically lock after a specified period of time.
The Yale Assure Lock digital deadbolt can be upgraded with a Yale module (Yale Access, Z-Wave Plus* and ZigBee*) to seamlessly integrate into most home automation and alarm systems.
Product Features
- Create Unique Pin Codes: Create up to 25 unique PIN codes, adjust lock features and personalise your settings
- Touchscreen Keypad: Unlock by entering your PIN code and lock-up with a simple tap of the keypad
- Key override: C4 Key override for optional secondary access
- Tamper Alarm: Protected by an 80 dB internal alarm
- Retrofit: Retrofit to a 54mm bore hole. Replace your mechanical deadbolt with the Yale Assure digital lock
- Simple Installation : Replaces your existing deadbolt in minutes with just a screwdriver
Specifications
- Backset: Adjustable 60-70mm
- Battery type: AA
- Material: Zinc
- Bolt: Deadbolt
- Door Thickness Range: 35mm to 50mm
- Door Preparation: 25mm latch hole and 54mm lock hole
- Lock Type: Deadbolt
- Warranty / Guarantee: Yale 1 year Electromechanical, Yale 10 Year Mechanical Warranty
- Key Profile (Keyed version): C4
- Operational Temperature Range: -25C to 60C
- Operating Humidity: up to 95%
- Approvals: RCM Compliant (EN 61000.6.3 2012 & EN 55032 2016), ANSI/BHMA A156.36 Grade 2 Certified
