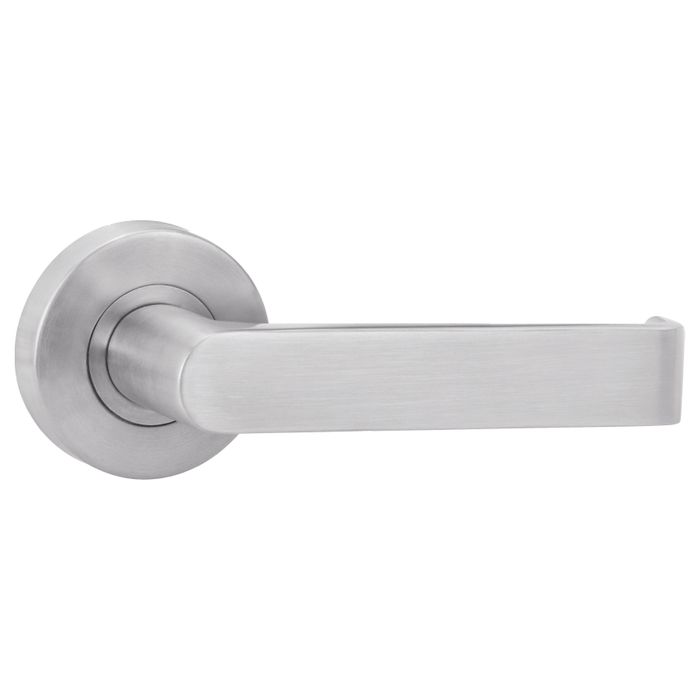

LEVER 1 (SEMI HOLLOW) PASSAGE SET NO LATCH
Description
The Yale Simplicity® Series door furniture is finished in 304 grade stainless steel making it ideally suited to compliment modern apartment interiors. Conforming to the specific requirements of multi-residential developments, the Simplicity Series includes 2 hour fire rating and features two AS1428.1 compliant lever options in both passage and privacy configurations. The Privacy Lever Sets come complete with privacy latches. The Passage Lever Setsare sold separately from the passage latches because these Lever Sets can also be installed with a mortice lock as an Entrance Set. Standard turn knobs and oval cylinder escutcheons are available.
Application
Suitable for use in multi-residential developments.
Designed for use with Australian oval cylinder style mortice locks as Entrance Sets and Tubular Latches.
Dimensions
Lever Rose has a 54mm diameter x 12mm.
Handing
A removable stop plate allows these symmetrically designed levers to be handed as either an operableor fixed lever on site.
Materials
All visible surfaces 304 stainless steel.
Door Thickness
32-55mm for Passage Sets
32-45mm for Privacy Sets
Fire Rated
Yale Simplicity Series Leversets have been successfully tested up to 2 hours with a fire rated Lockwood mortice lock on fire door assemblies (depending on typeof doorset) in accordance with Australian Standard AS1905.1:2005, Fire Resistant Doorsets.
AS1428.1
The range includes AS1428.1 compliant levers as shown.
Length 127mm
Projection 41mm
Disabled Accessible AS1428.1 Compliant
