NEPTUNE MAGLOCK SINGLE DOOR 500KG MON BL

Stock Code:
LSCNEML500MB
$282.33
Description

Description

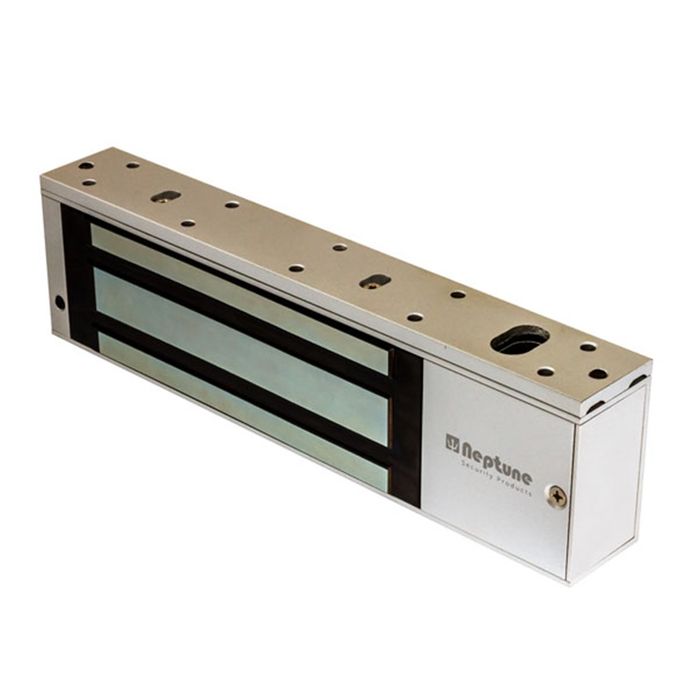

NEPTUNE Maglock Single Door, 500kg, Monitored

Description

Neptune monitored single door mag lock.

Suitable for Indoor use only.

- Single door monitored magnetic lock.
- Dual voltage 12vdc @ 480mA, 24vdc @ 240mA.
- Monitored, door status sensor.
- LED indicator.
- The overload current of relay contact is 1amp.
-.Overload is strictly prohibited for voltage of 24V-DC.
- Built-in time delay 0, 3, 6 or 9 seconds.
- Holding force up to 500kgs per magnet.
- Satin anodised aluminium housing.
- Zinc plated electromagnetic body.
- Magnet size 265 (L) x 71 (H) x 40 mm (D).
- Armature plate 185 (L) x 60 (H) x 13 mm (D).
- Weight 4.5kg.
- L and Z mounting brackets are also available.


Brand - NEPTUNE
Finished In (PANICBAR5) - Satin Anodised
Working Voltage - 12V~24V DC
Monitored (MAGLOCKS1) - Yes
Door Status Sensor - Yes
Holding Force In Kg - 500
LED Indicator Yes
Single Door Mag Lock Yes
Time Delay Yes
