SLIM-LINE DOOR PERIMETER SEAL BULB LNG D
Description

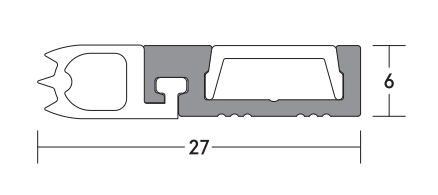

A slim-line, stop mounted compression seal incorporating an anodised aluminium carrier fitted with a fire rated silicone rubber gasket and non-shrink, click fit cover strip. The seal is fitted to the head and jambs of the doorframe to create an effective seal between the frame and the door face.
Key benefits
• A slim-line and unobtrusive acoustic seal that can easily be retrofitted to existing door assemblies.
• Fitted with high performance fire rated silicone rubber gasket.
• Supplied with slotted fixing holes for accurate positioning and easy adjustment.
• Non-shrink, click fit cover strip conceals the fixing points.
Standard lengths
1m, 2.1m and 2.75m.
Single door set pack (SDP): (1 x 1m , 2 x 2.1m)
Long single door set pack (LSDP): (1 x 1m, 2 x 2.75m)
Double door set pack (DDP): (3 x 2.1m)
Long double door set pack (LDDP): (1 x 2.1m, 2 x 2.75m).
Gap sizes
- Accommodates and seals gaps from 0mm to 8mm.
Fixing method
- Screw fixed to the doorframe with supplied screw pack.
Finishes
- Silver anodised aluminium with grey silicone rubber gasket and click-fit cover strip.
Approvals
Fire: Tested in accordance with AS1530.4 on proprietary AS1905.1 fire door assemblies for up to 4 hour rating.
Sound: Acoustically tested in accordance with ISO10140-2 and AS/NZS717.1 with ratings up to 39Rw on appropriate rated assemblies.
Durability: Long-term mechanical test, completing 1,000,000 cycles without failure.
