DROP SEAL FLANGED MORTICE 0820 SIL

Stock Code:
LWLAS8005/0820/S
$90.31
Description

Description

This fully mortised aluminium automatic drop seal features a silicone rubber gasket and internal fins. It is used to close the gap under single swing doors to maintain their acoustic, smoke or energy efficiency performance. The seal incorporates a high efficiency spring loaded mechanism that extends the seal as the door swings shut and automatically retracts it as the door is opened by just a few centimetres.

Key benefits
• Fully concealed and mechanically fixed to the bottom of the door through the flanges.
• Dual internal sealing fins enhance acoustic and smoke containment performance.
• Supplied with high performance fire rated silicone rubber gasket and aesthetic colour matched end caps.
• Fully automatic, no power connection required.
• Simple adjustment to suit varying door gap requirements.
• Proven long term reliability.

Standard lengths
820mm (may be trimmed back to 720mm)
920mm (may be trimmed back to 820mm)
1070mm (may be trimmed back to 920mm).

Gap sizes
- Accommodates and seals gaps up to 13mm. Greater
gaps can be sealed if product is used with a threshold plate.

Fixing method

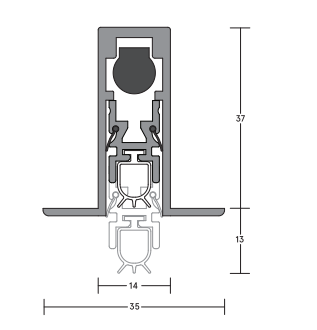

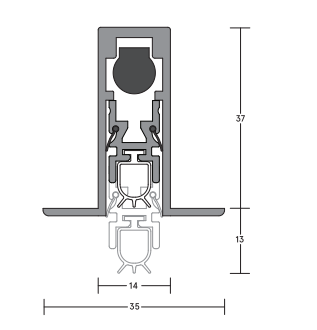

- Fits into a 15mm wide x 35mm deep groove and retained in place by screw fixing through the seal flanges.

Finishes
- Silver anodised aluminium with stainless steel end plates and grey silicone rubber gasket.
