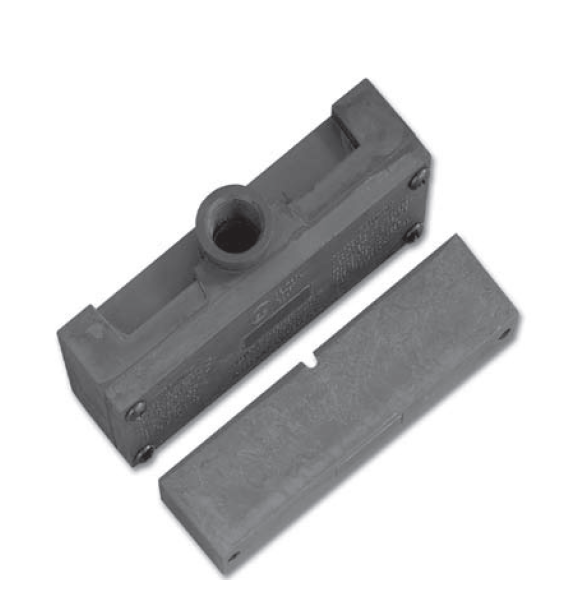

EXPLOSION PROOF MAGNETIC CATCH, TRIPLE BIAS 4.7MM-15.8MM GAP

Stock Code:
AC2804T
$566.96
Description

Description

• Balanced, triple-biased, SPDT switches
make defeat with external magnet difficult
• Tamper-protected cover
• UL Listed for hazardous location Class I
Group C and D, and Class II Group E, F, and G
• UL listed for use in hazardous location
classes
• Class I Group B housing available

Specifications

- Voltage: 2845T: 100 VAC/VDC max.
2844TW/2847T/2847TH: 30 VAC/VDC max.
- Current: 2845T: 0.5 A max.
2844TW/2847T/2847TH: 0.25 A max.
- Power: 2845T: 7.5 W max.
2844TW/2847T/2847TH: 3.0 W max.
- Loop type: 2845T: Closed
2844TW/2847T/2847TH: Open or Closed
- Electrical configuration: 2845T: Normally open
2844TW/2847T/2847TH: SPDT
- Gap distance: 2845T/2847T: 3/16 to 5/8 in.
2847TH: 1/4 to 1 in.
2844TW: Up to 2-1/2 in.
- Lead type: #6 screw terminal
- Dimensions: 5.75 x 2.0 x 0.813 in. (146 x 51 x 21 mm)
- Housing: Die-cast aluminum
- Color: Anodized
- Regulatory: UL, CUL (hazardous location classes: Class I
Groups C and D; Class II Groups E, F, and G)
