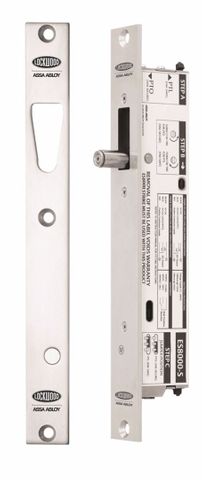

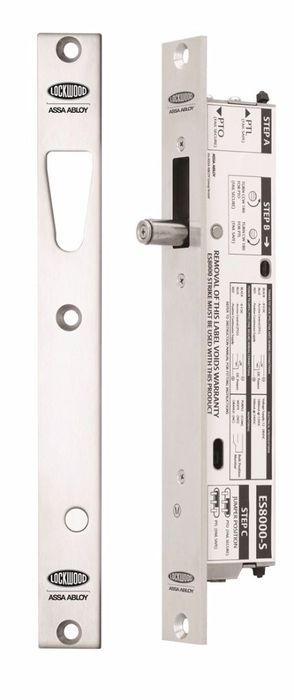

ES8000 D/BOLT 12-24VDC FAIL SECURE MONITORED NO FINISH
Description
The world famous and original V-Lock has been completely re-engineered to provide superior performance and reliability.
The ES8000-S now incorporates a new motor and 1:19 ratio gearbox providing up to 65% additional preload capability and a higher locking force up to 10Kg.
The electronic circuitry has also been completely upgraded to intelligently detect the locked state with “smart” retry function & uses on average 25% less peak current draw.
Aside from some minor cosmetic changes, the lock body and overall footprint remains unchanged and is a direct retrofit for the original V-Lock.
The ES8000-S has a high torque motorised bolt that moves from the vertical position to the horizontal state when locked. The bolt moves into the V shaped strike plate & allows for door misalignment of up to 7mm. The high torque motorised bolt can be concealed from view or surface mounted and has the world’s first fail-safe motor locking mechanism.
Features
-Side load - Pre-load Capable Lock will unlock with up to 25kg of side pressure, when wired in 3 wire mode
-Door misalignment of up to 3.5mm +/- (total of 7mm)
-Power to Lock (Fail Safe) / Power to Open (Fail Secure) field configurable
-High Torque Motorised locking and unlocking (3 wire mode)
-High Speed Operation. Unlocks in less than 1 second
-Intelligent smart retry locking function
-Surface Mount Accessory Kit. Ideal for 180° swing through glass door applications-
-Multiple applications – For Interior Doors the lock can be mounted vertically or horizontally (Note: for exterior doors due to possible water ingress the ES8000 must be mounted horizontally)
-5 Year Tricare Warranty
