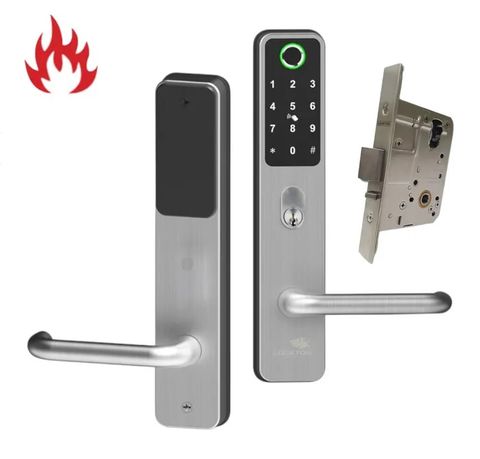

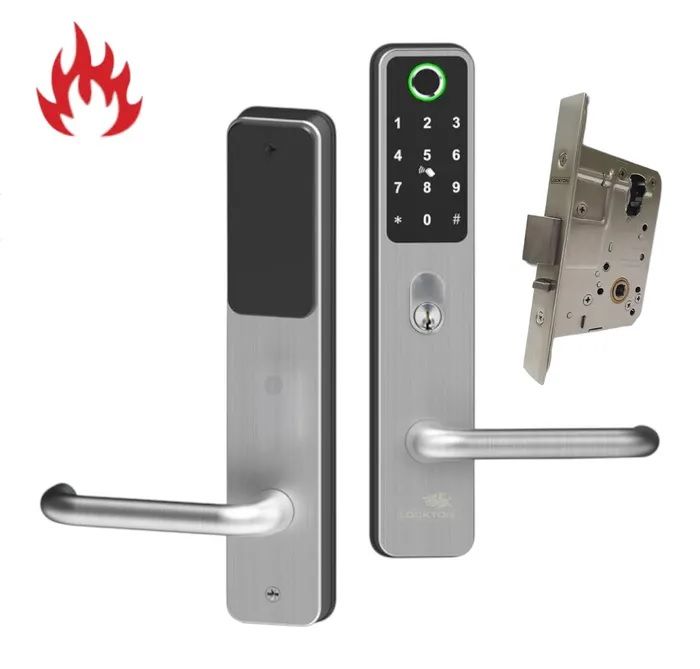

LOCKTON 'E-SERIES' CADELL52 SMART LOCK SSS
Description
The LOCKTON Art. CADELL52-SSS-ML60 Electronic Lever Mortice Lock Kit.
The CADELL52 (Commercial and Domestic Electronic Lever Lock) is the latest evolution in the LOCKTON E-Series Range that is built to suit a wide variety of both Commercial and Domestic Applications including Apartment Blocks, Schools, Businesses, Hospitals, Government Buildings and Private Residences.
The CADELL52 is designed to effortlessly retrofit over existing Australian Mortice Lock installations.
The CADELL52 can also be used to replace existing installations of most knobsets, leversets and deadbolts on the market.
In addition, the CADELL52 furniture will fit over most existing Commercial Mortice Lock Furniture installations due to the fixing posts being positioned identically to the standard Australian Mortice Furniture Post Spacing.
IP66 Rating on both external and internal handles means this lock can be installed in almost any application
Lock can be accessed via PIN Code, Fingerprint, RFID Tag, Bluetooth/App Control and Key Override
Key Override via 6-Pin C4 Rekeyable Oval Cylinder that can be converted to restricted profiles
Easily Use and Manage the lock via TTLOCK Phone App. Open the Lock, Add Users, Issue Temporary Codes and lots more
Optional Gateway accessories allow for remote access and control of lock via internet
Unlimited number of Bluetooth Users and Customised PIN Codes can be added to lock
Up to 1000 RFID Tags can be programmed and up to 100 Unique Fingerprint users can also be added
Internal Handle comes set as Passage but can be converted to include a Turn Snib for added security with included conversion kit
Also available in 95mm Backset Configuration (see RELATED PRODUCTS)
Lock is supplied with the following:
1 x CADELL52 Smart Lock Handle Set
2 x RFID Key Fobs
3 x Screw/Spindle Packs for varying Door Thicknesses
4 x AAA Batteries
1 x SG-ML60 60mm Backset Mortice Lock
1 x 50mm 6-Pin C4 Oval Cylinder - Art. 410/50-SC-KD
1 x Turnsnib Conversion Kit
1 x Fitting Template
1 x Instruction Manual
Oval Cylinder Selection
When Installing Oval Cylinder to CADELL52 Front Handle - Use Standard Oval Cylinder (34mm) - Art. 410-SC-KD
When Installing Oval Cylinder into Mortice Lock see below for selections based on Door Thickness:
Door Thickness: 32mm to 64mm use 50mm Oval Cylinder - Art. 410/50-SC-KD (Supplied in Box)
Door Thickness: 64mm to 90mm use 62mm Oval Cylinder - Art. 410/62-SC-KD
PRODUCT SPECIFICATION
Finish: Satin Stainless Steel
IP Rating: IP66
Lock Backset: 60mm
Mortice Lock Faceplate Dimensions (L x W): 175 x 25mm
Mortice Lock Strike Plate Dimensions (L x W): 70 x 46mm
Handle Dimensions (H x W x D): 263 x 52 x 22mm
Handle Material: Solid Stainless Steel
Distance between Door Surface & Inner Lever Edge: 48mm
Total Handle Projection from Door: 58mm
2mm Pressed 304 Stainless Steel
Suitable Door Thickness: 32-60mm
Suitable Door Weight: 20 to 120kgs
Batteries: 4 x 1.5V AAA Alkaline
Battery Life: Approx. 1 Year
3 Year Electronic Warranty (*)
10 Year Mechanical Warranty (*)
This product has been Fire tested & passed up to 2 hours
Physical Security Rating
Durability Rating (500,000 Cycles)
Design for Access and mobility: This product complies with the Disability Access requirements of AS1428.1-2009 (DDA)
Australian Registered Design No. 202512170 Patent Rights Reserved in Australia & Internationally - AU2025900875
