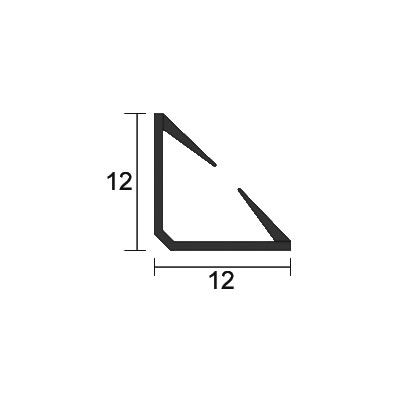

BATWING SELF-ADHESIVE SMOKE / ACOUSTIC P

Stock Code:
KIIS1212-2100-CLR
$21.19
Description

Description

These self-adhesive perimeter seals are fitted in the rebate of a door frame to contain smoke, sound, draughts, dust and light. Strategically located in the impact free zone, the seal adheres to the frame quickly and easily without having to remove the door. The Flexi-Wing™ hinge further reduces friction and resistance while retaining superior fire, smoke and acoustic performance.

The seal consists of a semi-rigid, flexible flame retardant PVC carrier combined with twin elastomeric sealing blades. An aggressive self-adhesive backing tape is situated on both sides of the carrier.

NB. To ensure proper adhesion, contact surfaces must be clean & any paint well-cured.

Gap Size
 Required door clearance 2-3mm

Standard Lengths
 2100mm

Standard Colours
 Clear
(white, grey & dark brown available to special order)

Approval
 Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
 Medium temperature smoke leakage approvals to AS1530 Part 7, compliant with AS6905 on proprietary door assemblies
 Conforms with BCA Specification C3.4 smoke sealing requirements
 Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
 Durability tests demonstrating over 100,000 open and close cycles
