FINNED REBATED SWEEP-TYPE SILICONE SEAL

Stock Code:
KIIS3016SI-3250CA
$112.22
Description

Description

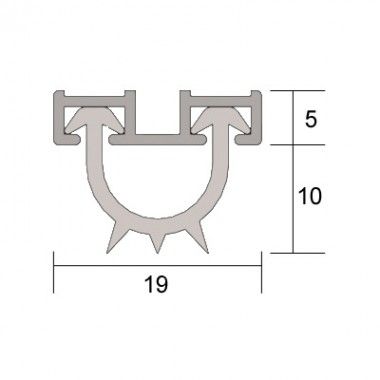

The IS3016si seal is cleverly concealed in a rebated groove in the meeting stile or bottom of the door leaf (respectively) for single and double swing timber doors. These seals may be surface mounted or rebated into doors to allow for depth adjustment as required. Both seals can provide effective containment against medium and ambient temperature smoke, sound, dust, light, weather and vermin.
Gap Size
 IS3016si: Min. 5mm / max. 9mm (allowing the aluminium carrier to be recessed).

Door set Standard Lengths
 Single: 1 x 1000mm, 2 x 2100mm
 Long Single: 1 x 1000mm, 2 x 2750mm
 Double: 3 x 2100mm
 Long Double: 1 x 2100mm, 2 x 2750mm

Standard Lengths
 1000mm
 2250mm
 Also available in: 250mm increments from 1000mm to 5000mm


Standard Colours
 Silver anodised aluminium with grey silicone gasket
(Black silicone gasket also available upon request)

Fixing
 Timber fixing screws are supplied with detailed fitting instructions
 Fixing holes are pre-drilled and slotted to allow the seals to be positioned accurately

Approval
 Conforms to BCA Specification C3.4 smoke sealing requirements
 Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
