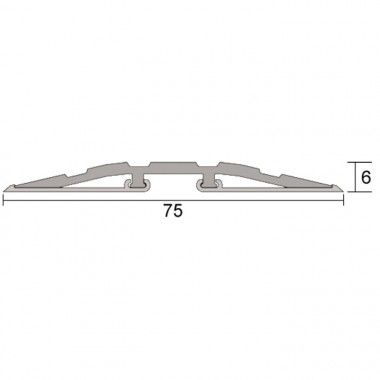

75MM-HEAVY DUTY LOW PROFILE THRESHOLD PL

Stock Code:
KIIS4010-3250CA
$173.33
Description

Description

The IS4010 heavy duty, low profile threshold plates are used in conjunction with other Kilargo door bottom seals to help prevent rain infiltration, draught and smoke penetration. Their 6mm low profile design ensures compliance with the ‘access for people with disability’ requirements, AS1428/1 and NCC D2.15 & D3.3, particularly for wheelchair traffic.
The IS4010 threshold plates have a durable, anodised finish and are supplied with PVC bedding pads to help eliminate vibration, noise and moisture ingress.

Gap Size
 Min. 21mm / max. 24mm

Standard Length
 1000mm
 2250mm
 Also available in: 250mm increments from 1000mm to 5000mm

Standard Colours
 Silver anodised aluminium
 Bronze anodised aluminium

Fixing
 Stainless Steel fixing screws and plugs are supplied
 Alternatively, fasten with builder’s adhesive for concealed fixing


Approval
 Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
 Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
 Complies with AS1428/1 (Design for access and mobility)
 Conforms to BCA D2.15 & D3.3 (Access for people with disabilities)
