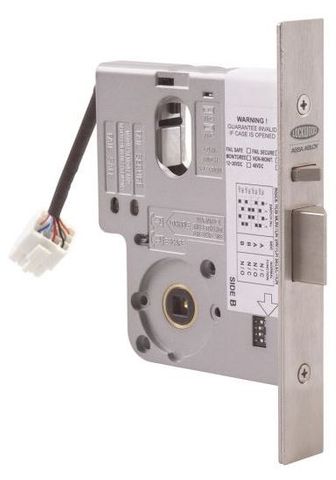

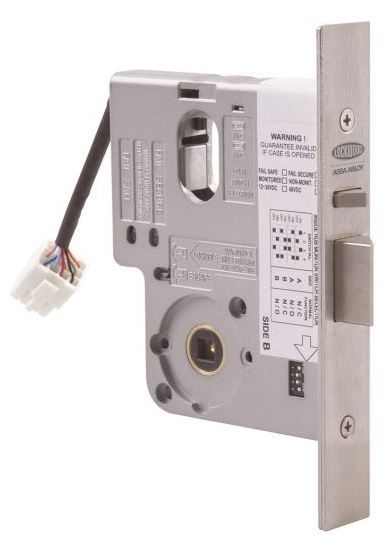

12-24VDC 60MM ELECTRIC MORTICE LOCK PRIMARY LOCK NON MONITOR
Description
Designed and manufactured in Australia,the 3570 series electric mortice is a high performance lock of superior quality. It is constructed from high grade zinc alloy, with a stainless steel latch bolt and face plate and is suited for all commercial applications.
The lock can be operated by push buttons, intercom systems and key switches; or integrated with electronic access control systems for use with higher security devices such as keypads or card readers. Available in non monitored and monitored versions.
Monitoring Feature
- Dead latched and Locked
- Door position/Reed switch
- Dual key override monitoring
- Request to exit/REX
- LED indication
Field Changeable settings
- Fail safe/fail secure configuration.
- Multi-voltage - will work on 12-24 Vdc systems.
- Handing - left hand and right hand doors
- Selection of free lever or locked lever on both sides of the door
- Key override monitoring either side of the door
- Monitoring contacts - normally closed, normally open (for key override and request to exit only)
Standards and Compliance
- SL8 (Security) Australian Lock Standard (AS4145.2.2008) (when used with equivalent security level keying system)
- D8 (Durability) Australian Lock Standard (AS4145.2.2008)
- RCM Certified
- SCEC Endorsed for SL3 Medium Threat Level Areas
