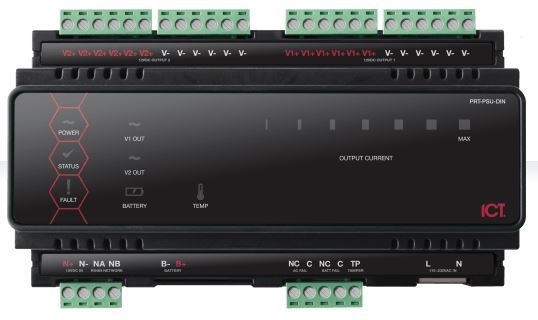

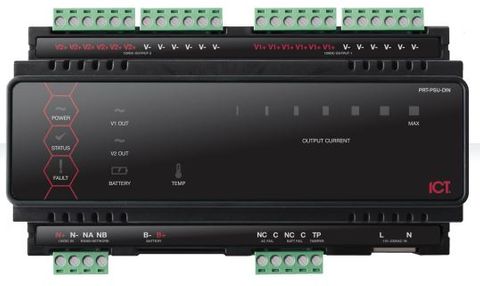

PROTEGE DIN RAIL 12V 4A INTELLIGENT BATTERY BACKUP PSU
Description
*** REQUIRES ICTCABLE-PWR-NZAUS *** (NOT INCLUDED)
The Protege DIN Rail 4A Intelligent Power Supply provides 12VDC power ideal for running security, access control or automation devices along with large numbers of Protege network powered modules in the same installation. The Protege DIN Rail 4A Intelligent Power Supply is designed for use with Industry Standard DIN Rail Mounting.
Key Features:
- Mains input ideal for reducing complexity in set up and ready deployment of module
- 12VDC output voltage 4 Amps continuous output current
- 2 Form B relay outputs that can be used either as PGMs whilst the module is online within the Protege System, or as additional Status Outputs for backup battery failure/disconnection and AC failure monitoring, when the module is offline/standalone
- Battery backup connection for continued power delivery in power outage conditions
- Intelligent charging algorithm monitors battery and AC supply allowing optimum performance to be achieved using standard lead acid batteries
- Processor controlled battery level testing and indication
- Connects to the Protege module network for intelligent communication and monitoring of actual values
- Monitored signals for battery low/disconnect and AC failure using Protege trouble zones and their respective status outputs (FORM B relay outputs)
- High performance 32 Bit processor
- Designed for use with industry standard DIN Rail mounting
