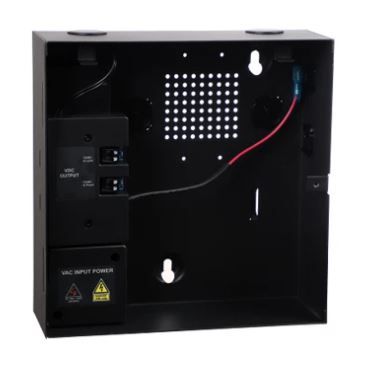

ME-0515M-A MULTI PURPOSE SWITCH MODE POWER
Description
SPECIFICATIONS
ELECTRICAL SPECIFICATIONS
▪ Switch Mode PS Input Voltage : 100 – 240 VAC, 50/60 Hz from main power Maximum input current: 1.5 A
▪ Switch Mode PS Output Voltage : 15 VDC, 4 A (60 Watts) to the PM-05
▪ Power Output from PM-05 : 12 VDC @ 2 A
▪ Battery Charger Output : 13.8 VDC, 300 mA for 12 VDC, 7 Ah lead acid battery
▪ Light Bar : 10 white LEDs, 10 mA, 0.3 W
ENVIRONMENTAL SPECIFICATIONS
▪ Operating Environment : Indoor
▪ Operating Temperature Range : -10°C - 50°C (14°F - 122°F)
▪ Operating Humidity Range : 0 to 85% (non-condensing)
MECHANICAL SPECIFICATIONS
▪ Enclosure Dimensions : 228 x 224 x 84 mm (9.0 x 8.8 x 3.3 in.)
▪ Weight : 2.1 kg (4.6 lb)
COMPATABILE DEVICES : The ME-0515M is a compatible device for the MD-25TB.
ORDERING MODELS
- ME-0515M-A with Type I plug power cable
- ME-0515M-B with Type G plug power cable
- ME-0515M-E with Type F plug power cable
- ME-0515M-U with Type B plug power cable
