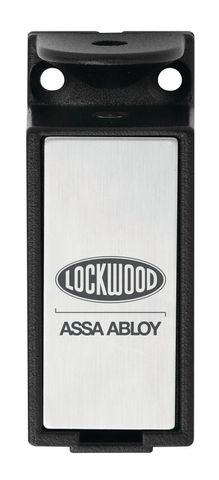

EL110 CABINET LOCK 12VDC FAIL SECURE NON MONITORED

Stock Code:
LWEL110-2
$273.22
Description

Description

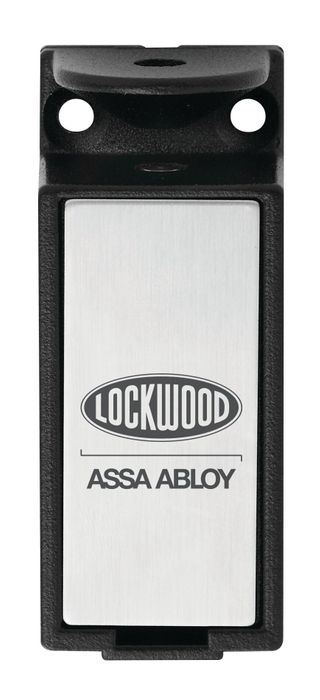

Lockwood EL110 Electric Cabinet Lock

The EL110 electric cabinet lock is a compact, cast aluminium lock specially designed for cabinets having either swing or sliding doors. The cabinet lock can be surface mounted either vertically or horizontally and offers maximum flexibility for ease of installation.
EL110 can also be controlled by any existing access control system or simply controlled through a remote keypad or keyswitch. The EL110 is cost efficient, robust, easy to install and suitable for one or multiple cabinet applications.

Key Features

Fail safe/fail secure changeable on site
Flexible alignment: has a 5mm XY adjustment after installation
Low current consumption: uses only 187mA @ 12Vdc
Available in 12Vdc
Self latching in fail secure mode
Solenoid rated for continuous use
TRICAREĀ® 5 Year Warranty
Applications

Cabinet locking
Swing or sliding cabinet doors
Standards and Compliance

CE Approved
C-Tick Certified
