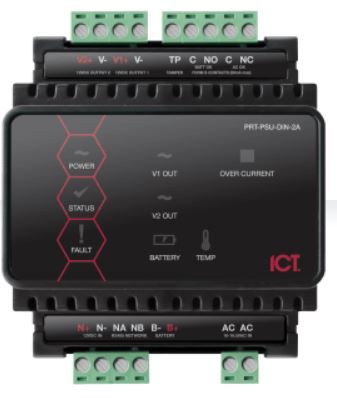

PROTEGE DIN RAIL 12V 2A INTELLIGENT BATTERY BACKUP PSU

Stock Code:
ICTPRT-PSU-DIN-2A
$673.22
Description

Description

*** REQUIRES A 16VAC POWER TRANSFORMER *** (NOT INCLUDED) PRODUCT CODE ICTTFR-40-16

The Protege DIN Rail 2A Intelligent Power Supply provides 12VDC power ideal for running security, access control or automation devices along with large numbers of Protege network powered modules in the same installation. The Protege DIN Rail 2A Intelligent Power Supply is designed for use with Industry Standard DIN Rail Mounting.

Key Features:

- 16VAC input ideal for our range of low cost AC transformers
- 12VDC Output voltage 2 Amps continuous Output current
- 2 Form B Relay Outputs that can be used either as PGMs whilst the module is online within the Protege System, or as additional Status Outputs for backup battery failure/disconnection and AC failure monitoring, when the module is offline/standalone
- Battery backup connection for continued power delivery in power outage conditions
- Intelligent charging algorithm monitors battery and AC supply allowing optimum performance to be achieved using standard lead acid batteries
- Processor controlled battery level testing and indication
- Protege module network connection for intelligent communication
- Reporting of actual values for Output voltages, Battery voltage and Total Output current supplied
- Monitored signals for Battery Low/Disconnect and AC Failure using Protege trouble zones and their respective status outputs (FORM B relay outputs)
- High Performance 32 Bit processor
- Designed for use with Industry Standard DIN Rail Mounting
