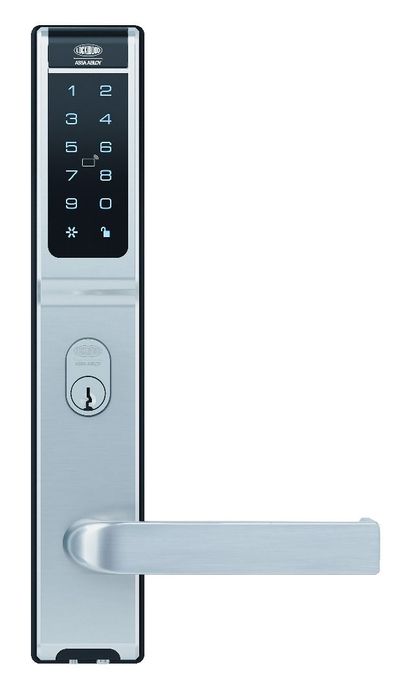

CORTEX CARD+PIN 3772 35-48 SC WITH 3772
Description
ASSA ABLOY’s Lockwood CORTEX® is leading the evolution of Digital Door Locks. CORTEX® is a commercial grade Digital Lockset that offers a standalone electronic access solution that can also be easily integrated to existing systems.
Innovative locking coupled with the durability and quality that is synonymous with the Lockwood brand, certifies Cortex as the premium choice for intelligent locking.
Moreover, CORTEX® is the first Australian digital lockset to be fire rated for 530 latch and Lockwood mortice variants and always has free egress from the inside.
The Lockwood CORTEX® features ultra-smooth lever action provided by the ergonomic Lever: 77A. Compliant with AS1428.1-2009 (Disabled accessible complaint levers); CORTEX® has undergone severe vandal testing and has a strength rating of up to SL8.
Special Features with Lockwood 3772 and 5782 Mortice Locks
Code Lockout or Privacy function: For use on Mortice versions only; usethe cylinder to lockout all electronic users*
Latch Holdback function: For use on Mortice versions only; use the cylinder to activate hold back function for high traffic doors that need to remain open for a part of the day**
*VCam required
**VCam required and activate holdback function under Mortice faceplate
Mechanical Features
Compliant with AS1428.1-2009 (Disabled accessible complaint levers)
Mechanical Key Code Lockout (Mortice version)
Holdback (Mortice version)
Key Override (Mortice version)
Electronic Technical Information
Battery Type 4 x AA Alkaline
RFID Format iClass & Mifare
Card Read Range <2cm
Battery Lifetime Card 40,000*
Battery Lifetime Keypad 18,000**
Operating Temperature -10ºC to 65ºC
Humidity >85% Non condensating
Approvals RCM, CE
Battery Emergency PINS Yes
Electronic Features
PIN Code Users 20
Card Users 40
Dual Credentials Yes
Set Date & Time Yes
Visitor Code Yes
Passage Mode Yes
Time based Passage Mode Yes
Battery % Check Yes
Smart Battery Low Check Yes
Volume Setting On / Off
Wrong Code Lock out 1 User
One Time PIN 1 User
Extended Timed User 1 User
* Estimate over a 12-18 month period
** 6 second unlock cycle time
Specification Statement
The lockset should have the ability to program time and date into thelock. Thus allowing various time based features; Timed passage mode and timed Visitor Code functions. The lockset should allow for Dual Security credential requires that two users are present to unlock the door with card and PIN.
