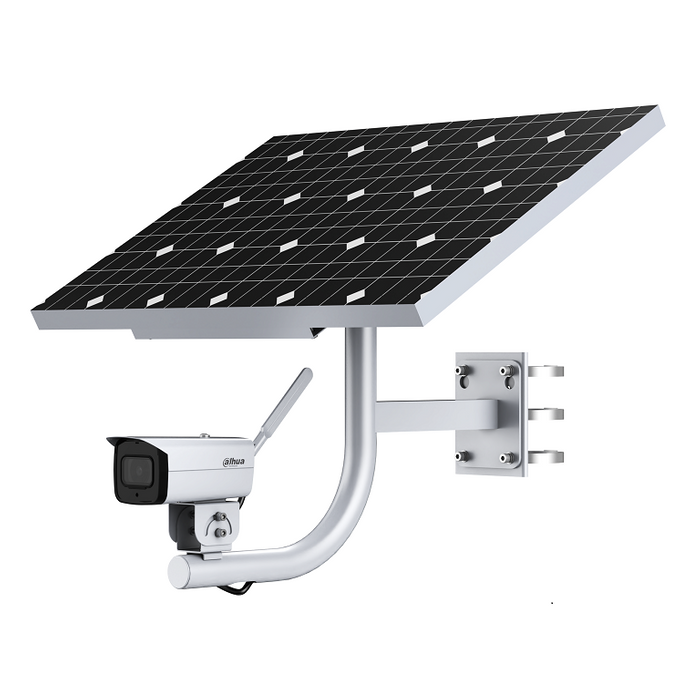

DAHUA SOLAR KIT 100 WATT & BATTERY & 4G BULLET CAMERA
Description
Kit include PFM378-B100-WB , Lithium Battery and 4G Camera
Integrated design, easy to install
Supports wall mount and pole mount
100W Monocrystalline solar panel.
Built sturdy to resist storms with sustained winds up to 117 km/h
Remote monitoring available through the mobile app.
Maximum Power Point Tracking (MPPT) charging controller.
RS-485 communication function.
Electric protection.
Solar Panel
Type
Monocrystalline silicon
Max. Power
100 W
Output Voltage
18.8 VDC
Solar Cell Efficiency
21%
Max. Mechanical Load
5400 Pa
Controller
Type
MPPT
Operating Voltage
12 VDC
Rated Charging Current
10 A
Rated discharge current
10 A
MPPT Tracking Efficiency
≥ 99%
Communication Mode
RS485
Operating Temperature
–20 °C to +60 °C (–4 °F to +140 °F)
Rated Charging Power
130 W
Over-discharge Protection Voltage
11.1 VDC
Others
Over-temperature ,over-discharge,overa-voltage and low-temperature protection of battery; overload and short circuit protection of load.
Port
Power Output
Φ5.5 mm × Φ2.1 mm × 12 mm
(Φ0.22" × Φ0.08" × 0.47")
RS–485
Red: RS485-A
Black: RS485-B
Output Port
CSA authorized M15 2-core waterproof connector (connected to lithium battery)
General
Main Body Material
Q235
IP Rating
IP65
Installation
Pole mount, Φ80mm~Φ150mm
Adjustable Angle
Solar panel: H: 360°, V: 20°/40°/60°
Camera: H: 360°, V: 0°–75°
Product Dimensions
815mm x 846.8mm x 893.3mm
(32.1” x 33.3” x 35.2”)
Packaging Dimensions
880 mm × 765 mm × 275 mm (34.65" × 30.12" × 10.83")
Packaging Method
1 pc in each carton
Net Weight
20.1 kg (44.31 lb)
Gross Weight
23.8 kg (52.47 lb)
Environment
Operating Altitude
< 3000 m (9842.5 ft)
Applicable Area
Areas with daily exposure to solar radiation for more than 3.5 hours
Operating Temperature
–20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity
< 95% (RH)
Storage Temperature
0 °C to 40 °C (32 °F to 104 °F)
Storage Humidity
< 95% (RH)
Certifications
Certifications
CE: EN 55032:2015+A11:2020,EN 55035:2017+A11:2020,EN 55024:2010+A1:2015,EN 50130-4:2011+A1:2014
UKCA: EN 55032:2015+A11:2020,EN 55035:2017+A11:2020,EN 55024:2010+A1:2015,EN 50130-4:2011+A1:2014
Protection
Grade
IP66
Connection
Connection
M15 female connector
Application
Applicable Device
DH-PFM364L-D1, DH-PFM363L-D1, and DH-PFM363LSD1
General
Product Dimensions
Outer: 359.8 mm × 268.7mm × 116.0 mm(14.17" × 10.58" × 4.57") Inner: 282.0 mm × 209.0 mm × 98.5 mm (11.10" × 8.23" × 3.88")
Material
Die casting aluminum
Color
Grey
Net Weight
8.5 kg (18.74 lb)
Gross Weight
9.8 kg (21.61 lb)
Packaging Dimensions
459 mm × 349 mm × 209 mm
(18.07" × 13.74" × 8.23")
Packaging Method
1 pc in each carton
Environment
Operating Temperature
–20°C to 60°C (–4°F to 140°F)
Operating Humidity
<95% (RH)
Storage Temperature
0°C to 40°C (32°F to 104°F)
Storage Humidity
<95% (RH)
Function
Charging Current
9A
Discharge Current
9A
Rated Voltage
DC12.8V
Internal Resistance
≤80mΩ
Nominal Capacity
45Ah
Charging Voltage
Max.DC14.6V
Max.Current
Charging: 10A, Discharging: 10A
Certification
CE: EN 61000-6-3, EN IEC 61000-6-1
FCC: FCC Part 15, Subpart B
