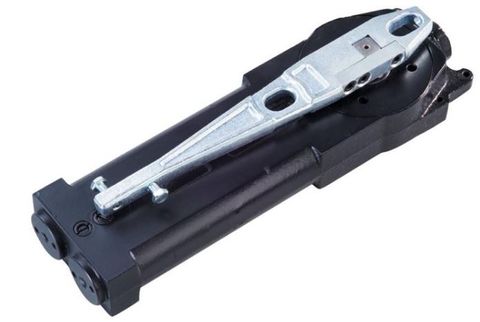

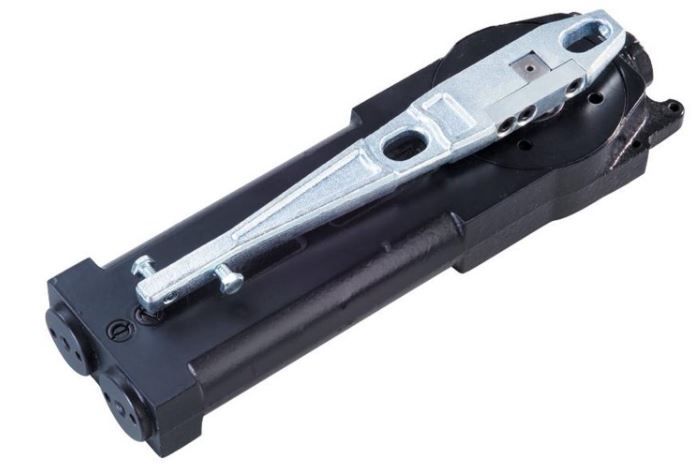

9800 SERIES SIZE 4 TRANSOM CLOSER 90 DEG
Description
Lockwood 9800 Series Concealed Overhead Transom Door Closers provide a solution for applications where door control must be provided without disturbing the appearance of the door. The closer fits into the transom above the door, most of the preparatory work is undertaken prior to installation, leaving minimal on site fitting.
Fully concealed door closers are designed to provide positive centering and door control on manually operated single or double action internal and external doors in schools, hospitals, clubs, factories, offices and commercial buildings.
Features of the Lockwood 9800 Series Concealed Overhead Transom Door Closer
- Suitable for both single and double action doors
- Adjustable closing and latching speeds
- All models feature easy to install side load design
- Fully adjustable, vertically within opening and central parking positions
- Maximum door weight 115kgs
Materials
- Furniture body: high grade cast iron
- Internal body: heat treated high alloy steel and ball bearings for optimum efficiency
Lockwood OTC series hydraulic door closers have been successfully tested on fire door assemblies in accordance with Australian Standard AS 1905 Part 1, 1997 Fire Resistant Doorsets.
