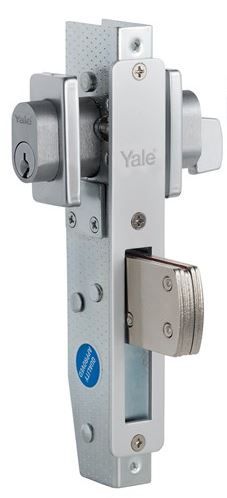

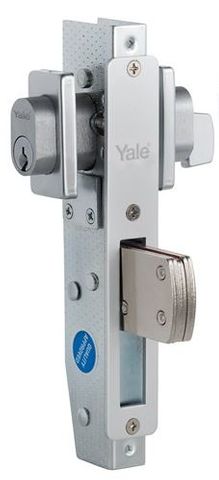

Y590 SHORT BACKSET CYLINDER & TURN MORTICE LOCK 22MM THROW

Stock Code:
LWY590CTSC
$76.73
Description

Description

The Yale Short Backset Mortice Locks are designed and packaged specifically for the commercial metal and frameless glass door fabricator markets.

- Application
A range of 23mm backset deadlocks and sliding door locks, suitable for use on aluminium, or frameless glass doors in industrial and commercial buildings, institutions, clubs and similar buildings.

- Deadlocks
A single action bolt with steel case and laminated steel bolt. Available in both 22mm bolt throw and 36mm bolt throw variations. The bolt is positively dogged in both the locked and unlocked position before the key can be withdrawn.

- Sliding Door Lock
A similar case and mechanism to the deadlock with a 29mm hook bolt designed to engage in a self-latching strike.

- Configurations
Each lock is supplied with two escutcheons and is available in double cylinder and single cylinder and turn configurations.

- Frameless Glass Doors
Deadlocks may be used with an appropriate patch fitting on frameless glass doors. A trough strike is available for this application.

Specification
- Security
Conforms with level S1 (Physical Security) Australian Lock Standard (Standard No. AS4145.2-1993).

- Durability
Conforms with level D3 (Durability) Australian Lock Standard (Standard No. AS 4145.2-1993).

- Door Thickness
Minimum door thickness is 30mm (due to the width of the face plate). Maximum door thickness using a standard cylinder and cylinder escutcheons and/or turn is 58mm.

- Handing
All functions are fully reversible. Cylinders and turns are fitted on site to suit door handing.
Outside : Locked or unlocked by key
Inside : Locked or unlocked by turnknob

- Standard Keying
Supplied individually keyed in "C4" keyway with 2 keys per lock.
