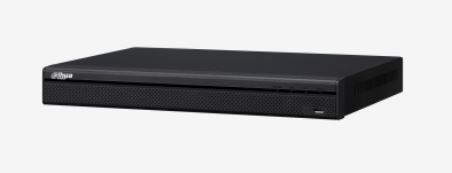

DAHUA 8 CH NVR 4.0 SMART INTERFACE HDMI
Description
*** PLEASE NOTE - NO HARD DISK DRIVE SUPPLIED AND WILL NEED TO BE ADDED BEFORE CHECK OUT***
- System
Main Processor : Quad-core embedded processor
Operating System : Embedded LINUX
- Aduio and Video
IP Camera Input : 8 Channel
Two-way Talk : 1 Channel Input, 1 Channel Output, RCA
- Display
Interface : 1 HDMI, 1 VGA
Resolution : HDMI- 3840×2160, 1920×1080, 1280×1024, 1280×720 / VGA - 1920×1080, 1280×1024, 1280×720
Decoding Capacity : 2ch@4K 30fps, 8ch@1080P 30fps
Multi-screen Display : 1/4/8/9
OSD : Camera title, Time, Camera lock, Motion detection, Recording
- Recording
Compression : Smart H.265+/H.265/Smart H.264+/H.264
Resolution : 8Mp/ 6Mp/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc.
Record Rate : 200Mbps
Bit Rate :16Kbps ~ 20Mbps Per Channel
Record Mode : Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering, Video Loss), Stop
Record Interval : 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
- Video Detection and Alarm
Trigger Events : Recording, PTZ, Tour, Video Push, Email, Snapshot, Buzzer and Screen Tips
Video Detection : Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering
Alarm input : 4 Channel
Alarm output : 1-Channel relay output,1-Channel 12V control
- Playback and Backup
Playback : 1/4/9
Search Mode : Time /Date, MD and Exact Search (accurate to second), Smart search
Playback Function : Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom
Backup Mode : USB Device/Network
- Third-party Support
Third-party Support : Arecont Vision, Airlive, AXIS, Canon, Dynacolor, JVC, LG, Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Watchnet and more
- Network
Interface : 1 RJ-45 Port (10/100/1000Mbps)
Ethernet Port : 1 Independent 1000Mbps Ethernet Port
PoE : 8 ports (IEEE802.3at/af)
Network Function : HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, DDNS, FTP, SNMP, IP Search (Support IP camera, DVR, NVS, etc.)
Max. User Access : 128 users
Smart Phone : iPhone, iPad, Android
Interoperability : ONVIF 2.4, SDK, CGI
- Storage
Internal HDD : 2 SATA III Ports, Up to 6 TB capacity for each HDD
HDD Mode : Single
- Auxiliary Interface
USB : 2 ports (1 USB2.0, 1 USB3.0)
RS232 : N/A
RS48 : N/A
- Electrical
Power Supply : AC100V ~ 240V, 50 ~ 60 Hz
Power Consumption : NVR: < 9.6W(without HDD), PoE: Max 25.5w for single port, 130w in total
- Environmental
Operating Conditions : -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions : -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH
- Construction
Dimensions : 1U, 375mm×327.5mm×53mm (14.8" x 12.9" x2.1")
Net Weight : 2.6kg (5.7 lb) (without HDD)
Gross Weight : 4kg(8.8 lb)(without HDD)
- Certifications
CE : EN55032, EN55024, EN50130-4, EN60950-1
FCC : Part 15 Subpart B, ANSI C63.4-2014
UL : UL60950-1
