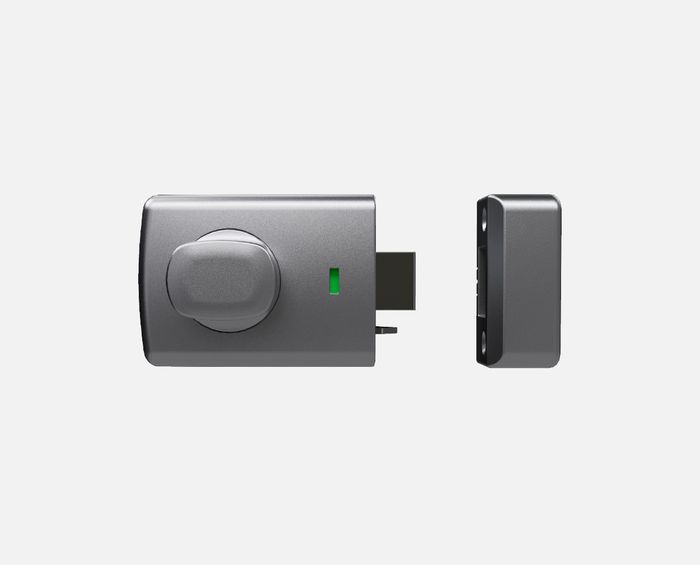

CARBINE ALPHA CRD-1K1, SINGLE CYLINDER DEADLATCH KNOB INSIDE
Description
Carbine Alpha
New field removable cartridge system allowing: Easy latch reversal for inward and outward opening doors Easy internal cylinder removal for rekeying when required Easy knob and lever changeover in the field
Suits Left and Right hand opening doors
Rotation direction selection for knob and lever (lock can be set prior to installation so that the knob or lever will only rotate in one direction. Especially useful for when you need a lever to operate in a downward direction only).
Hold back enable and disable (lock can be set prior to installation so that holdback can be disabled or enabled)
Superior deadlatching mechanism
Deadlatching of latch activates at a wider door gap than most existing deadlatching rim locks providing a higher lever of security.
45 degree lever rotation to unlock the door
45 degree knob rotation to unlock the door
Lever compliant with BCA codes and AS1428. Lever Offset (distance between door face and inside of lever) meets requirement for disability
Lever has a return on the end to meet the requirement for disability
‘Internal deadlocking’ indicator – to show if internal knob or lever is deadlocked
Lockable hold back function – when holdback has been activated by the knob or lever, it can be locked in this mode by the internal key.
Internal deadlock of knob and lever (internal deadlock models) (when a knob or lever with internal lock cylinder is installed, the knob or lever can be deadlocked providing an internal deadlocking function. When the internal knob or lever is deadlocked, it can be deactivated via the inside key cylinder or external key cylinder)
Easy internal cylinder removal and replacement
6 Pin Internal Cylinder, Keyed to 5 pin – for knob and lever (Carbine CA-DL3 Cylinder (355 Inner style)) - Adjustable strike (vertical direction) +/-1.5mm (Timber Strike/Metal Frame Strike)
Concealed fixing
4 strike options, Timber Frame, Metal Frame, Outward Opening Diecast, Outward Opening steel
Has been subjected to Davcor’s rigorous in house testing program
Heavy duty external lock cylinder escutcheon supplied as standard
Marine Grade Stainless Steel Latch Bolt and Snib
Cut resistant latch bolt
Reinforced strike with extended fasteners for increased frame strength
Covers scarring of most existing and previous Australian deadlatch rim locks
Can be used with CDL7100-2SC and NK2000-2SC Carbine digital locks - Suits standard rim cylinders (including Carbine CRC range)
Retrofits most current and previous* Australian deadlatch rim locks.
Lever (has cylinder hole), Lever (No cylinder hole) available as a spare part
Timber, metal frame and open out strikes available as a spare part
3mm stackable packer available as a spare part
Twin pack available
High grade Zinc Alloy Lock Casing, knob and lever.
Available in satin chrome and matt black finishes
*New screw holes may be required when replacing older model Australian Deadlatch locks.
Technical Specifications : - Suits door thickness 30-50mm (extended screws and tail pieces available) - Backset 60mm - 19mm Stainless Steel latch bolt projection - 1-3mm door gap
