VELOCITY PASSAGE SET & L3 LEVER TP
Description
Be confident with a design that transcends the basic functional and aesthetic requirements of residential hardware.
Setting the benchmark in ease of installation, the Lockwood Velocity® leverset is supplied pre-assembled with no loose screws or spindles. Screws align through the rose removing the need to locate them blind through the door. A twist and a quick tightening of the screws and the levers are installed!
Featuring a 63mm round rose or 66.5mm square rose, the Nero® Velocity Large Rose Series is suitable for retrofit and common residential door preparations.
Features of the Velocity Series Door Furniture
- All fixings are concealed beneath a removable rose trim providing a crisp and clean presentation desired by the discerning home owner
- Simple twist and tighten fixing method with pre-assembled leverset allows for super easy and fast installation
- Available in a choice of square or round rose with the Element lever design
- The roses fit 50mm or 54mm diameter holes, making it suitable for retrofit and common door preparations
- Designed in Australia for the specific needs of the Australian market

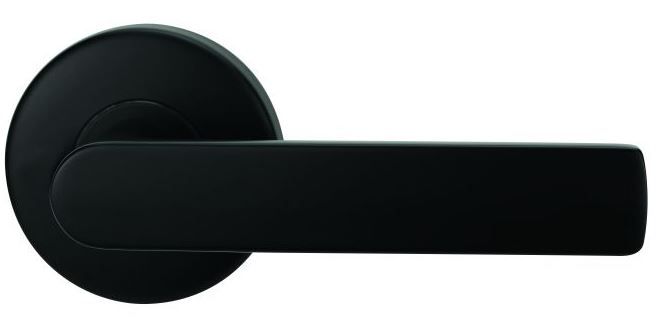

Velocity Passage Set & L3 Lever (Matt Black)
- Lever Dimensions
Length: 122mm
Projection: 54.5mm
Finger clearance: 47.5mm
- Rose Dimensions
Rouse Rose: 63mm by 12.5mm
Square Rose: 66.5mm by 12.5mm
- Materials
Solid zinc die-cast
- Door Thickness
32 to 45mm
- Latches
Passage sets are supplied with a pair of lever handles and a 60mm backset tubular latch
Privacy sets are supplied with a pair of lever handles and a 60mm backset privacy tubular latch which includes an activating pin for the inside of the door and an external emergency release function. The privacy setting is automatically released when the internal handle is operated
Dummy sets are supplied with one fixed lever handle
All latches are supplied with industry standard "D" strikes
