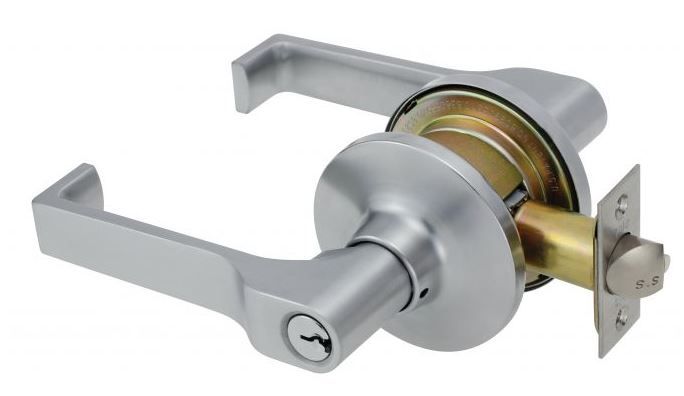

KEY IN LEVER AS1428.1 DOUBLE CYL GLASSDOOR SET TIEBOLT
Description
Lockwood’s new AS1428.1 compliant leverset features a right angle return of 20mm length and good clearance from the door to prevent fingers slipping off during use. A push button on the interior side lever of the Exterior and Privacy Sets allows a single action egress function. This leverset is designed to enable positive grip and is suitable for door thickness of 35mm to 45mm.
Features and Specifications
- Door Clearance
- To ensure correct functioning of the lockset, the clearance between the door and the frame should be at least 3mm.
Cylinder
- Available in Exterior, Privacy, Passage, Single Dummy, Storeroom, Classroom, Glass Door and Lever/Knob Combination sets
- Supplied with a standard “PD” type cylinder keyed to C4 profile with two keys
- Suitable for residential and commercial applications
Restricted Special Keying
- Lockwood locks can be keyed to a number of controlled and/or specially keyed systems. These range from legally protected keys to protect against unauthorised duplication, which can also include specially designed key systems such as master key systems, which allow for different levels of mechanical access control.
- Backset: 60 to 70mm adjustable backset latch
- Door Thickness: Door Thickness 35 to 45mm
- Finishes: Satin Chrome Brushed (SC)
- Handing: Non handed
- Latch: 13mm projection
- Materials High purity zinc alloy. Concealed fixing screws
Lockwood Enable® Series Key in Lever Locksets - Double Cylinder Glassdoor Set
- Outside: Opened by lever from either side except when both levers are locked by key from either side
- Inside: Opened by lever from either side except when both levers are locked by key from either side
