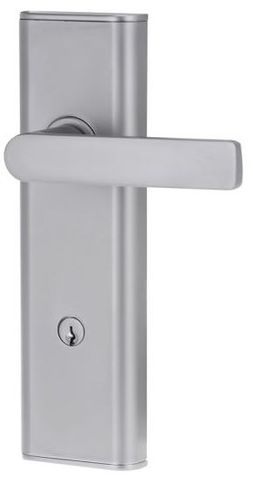

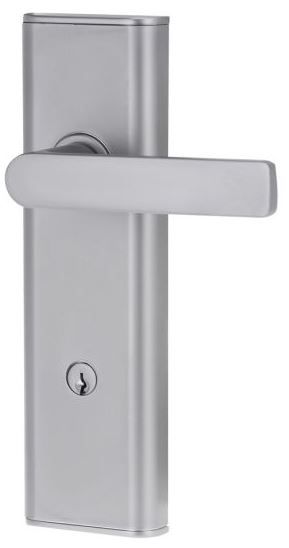

NEXION VISION MECHANICAL LEVER 3
Description
The Lockwood Nexion® Mechanical Entry Locksets represent the next generation in home security. Designed and manufactured to the highest quality standard, the Lockwood Nexion range has set the benchmark for safety, security and style. The Nexion range of deadlatches offers the ultimate protection for your home and family.
The Nexion Mechanical Entry Lockset is available in two different plate styles and a range of lever styles, allowing you to achieve a consistent style throughout your home.
Features of the Nexion Mechanical Entry Lockset
- SafetyRelease™ automatically unlocks the inside handle upon entry to minimise the risk of being locked in.
- Lockout Release automatically unlocks the outside handle when the inside handle or snib is operated.
- Factory set for left hand opening doors, easily changed for right hand opening doors.
- Can be keyed alike with other Lockwood door locks
- Conforms to Australian Standard AS4145.2-2008 SL7D8C5K6
Nexion Mechanical Lockset - Double Cylinder - Vision Plate - Double Cylinder - Element (Satin Chrome Pearl)
Case
- High purity zinc alloy
- Field selectable handing
Backset
- 60mm standard
- 70mm backset latch available as an accessory
Latch
- 13mm projection brass bolt.
Door Thickness
- 35 to 45mm
Cylinders
- Internal and external
- 5 pin tumbler mechanism with 6 pin capability
- Brass cylinders and brass barrels
Keying
- Standard Keying
Supplied individually keyed with two keys per lock
78,000 key combinations
Key blank KB2015P
- Restricted Special Keying
Lockwood locks can be keyed to a number of controlled and/or specially keyed systems. These range from legally protected keys to protect against unauthorised duplication, which can also include specially designed key systems such as master key systems, which allow for different levels of mechanical access control.
