OPTIMUM 1PT HINGED 30MM BACKSET TP
Description
The Lockwood Optimum Mortice Lock range is easy to install and is available to suit hinged residential aluminium and timber door applications.
Features of the Optimum Hinged Door Multi-Point Mortice Locks
- Easily reversible radiused latch bolt enables field selectable handing
- Durable mechanism and stainless steel faceplate
- Accepts either 7.6mm or 8mm spindle
- Latch can be deadlocked by key
- Short throw (13mm) and Long throw (24mm) locking bolt options available
- Provides multi-point locking when used with shootbolts (4 Point)
- Latch only version available (1 Point)
- 30mm and 40mm backset variants available in 4 Point version
- Door thickness: 32mm to 45mm
- Lock Status Indication available when used with Palladium Xtra furniture
- A range of strikes are available to provide optimal seal compression (strikes must be ordered separately)
Lock Status Indicators
- Passage Mode
Passage mode gives convenient access from inside and outside without the need for a key
- Safety Mode
Safety mode is activated and deactivated by operating the snib lever from inside and requires the key to unlock from the outside
- Secure Mode
Handles locked securely from both inside and outside and requires the key to unlock from either side

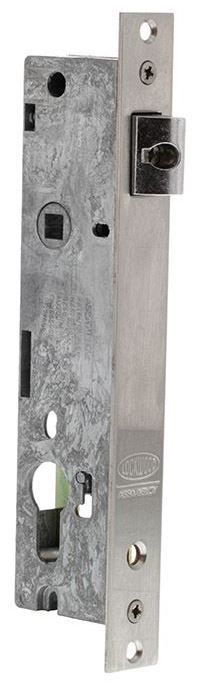

Lockwood Optimum Hinged Door Lock
- 1pt 30mm Backset
- Suits 32 - 45mm timber or aluminium residential doors
- Compatible with 5 pin or 6 pin fixed cam Euro profile cylinders. Cylinders must be ordered separately
- Brushed stainless steel faceplate supplied
