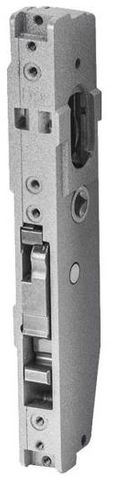

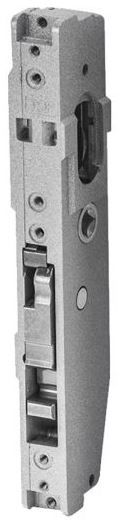

3540 - SHORT BACKSET PRIMARY LOCK 22MM B
Description
Short backset, swing bolt deadlocks suitable for narrow stile hinged doors. Positive action deadbolt locked or unlocked by either key, turnknob, escape turn or lever handle.
Suitable for sliding doors where lock can be mounted to door jamb and deadbolt engages strike mounted to face of door.
The 3540 series is available in fabricator, metal door and timber door fixing configurations.
Materials
- High quality zinc alloy case
- Brass turnknobs and cylinder escutcheons
- Zinc die cast levers
Backset
- 23mm
Bolt
- Sintered stainless steel
Door Thickness
- Suits hollow stile door sections with 28mm internal thickness and 58mm maximum external thickness
- Timber Doors: 32 to 58mm.
Cylinder
- 5 pin tumbler mechanism
- Brass cylinders and brass barrels
