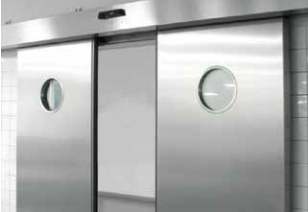

GILGEN SLA250 AUTO DOOR OPERATOR
Description
Specification:
The automatic (bi-parting/single slide) model SLA-250 door operators as manufactured by Access Entry Pty Ltd are to be electrically approved for 230v-240v, fully housed in an extruded aluminium housing of Height 140mm x Width 165 mm and must comply with all BCA requirements for automatic door operators.
The equipment shall incorporate the following features:
• Drive: Super-torque H section steel reinforced timing belt design
• Motor: Continuously rated brush-less, heavy duty DC motor capable of 24 hour operation with power consumption of 80w and carry a minimum two year warranty.
• Door Weights: Maximum weight per single leaf being 160kg or combined weight up to 250kg.
• Gear Box: Maintenance free, beveled worm drive gearbox, including Anti- shock dynamic braking to provide smooth and effective breaking.
• Track: 25um Black Anodized aluminium, long life, for whisper quiet operation. .
• Actuation & Safety: 2 x IXIO-DT1 combination Radar & Infrared sensors for maximum safety/protection. Automatic reversing if obstruction during closing sequence with fully adjustable sensitivity settings.
• Controller: Solid state automatic self-learning microprocessor controller with Safety reverse/stop with delay including low speed, continuous retry after obstruction, prior to resuming normal operation.
• Standard Interface ability: Security, FIP, BMS.
• Monitored battery backup failsafe: As per BCA Regulations, doors drive fully open automatically on power failure/fire alarm (integration by others). Failsafe must provide up to 200 operations on power failure and or up to 2 days secure locking. Doors automatically return to original function mode when power resumes or fire signal is deactivated.
• Door Type (Options)
Hanger Brackets including machined mounting/spacer blocks to suit aluminium framed doors Hanger Brackets including top rail to suit frameless glass doors (10 12 & 15mm glass)
• Locking
Electric locking – selectable option of Failsafe or Fail-Secure, including battery backup. P2 emergency/afterhours Egress button compliant with BCA & AS5007-2007 Standard SK2 entry key switch (can be master keyed by client).
• Special entry
Card reader or Swipe Card (by security contractors)
• Control Functions
Standard – M4 four position rotary switch/selector
Optional- SK4 four position security key switch (can be master keyed by client)
