FACE-FIXED SILICONE WEATHER SEAL FOR DOO

Stock Code:
KIIS3070SI-1500CA
$70.63
Description

Description

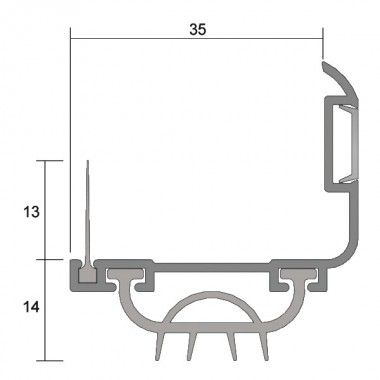

The IS3070si weather resistant door bottom seal can be fitted without removing the door, and can be used with alternative threshold plates. This seal provides effective containment against cold smoke, sound, dust, light, insects and weather. The aesthetic cover strip ensures there is no visible screw line.
Gap Size
 Min. 12mm / max. 20mm

Standard Length
 1000mm
 2250mm
 Also available in: 250mm increments from 1000mm to 5000mm

Standard Colours
 Silver anodised aluminium carrier with grey silicone gasket and cover strip

Fixing
 Fixing screws are supplied with detailed fitting instructions
 Fixing holes are pre-drilled and slotted to allow the seals to be adjusted and positioned accurately

Approval
 Conforms to BCA Specification C3.4 smoke sealing requirements
 Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
